前言 ​

tiptap 是基于 prosemirror 的富文本编辑器，开箱即用，所以 mvp 版本是比较简单的，但是要合理划分逻辑，让文件不臃肿，提高可维护性

之前已经说过，starter-kit 包含了很多插件，如果还需要更多插件，需要去下载和注入插件，可以在examples 和 extensions找插件（如文中的 Image 图片上传插件，placeholder 插件），找不到就自己手写一个插件

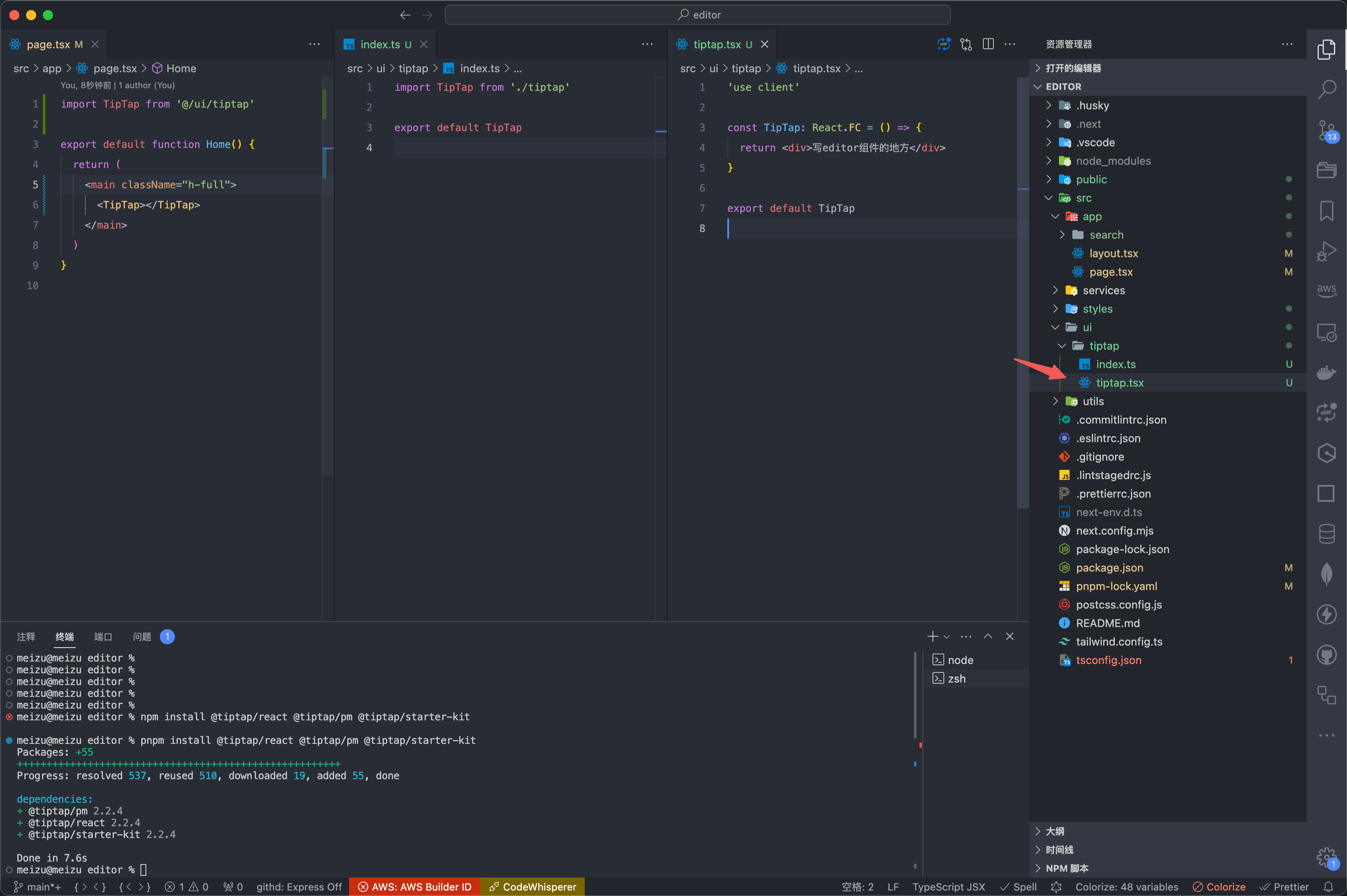

editor 组件划分 ​

Alt text

编辑器组件为 TipTap，客户端组件，核心逻辑在src/ui/tiptap/tiptap.tsx

初始化 editor 和逻辑拆分 ​

js
pnpm install @tiptap/react @tiptap/pm @tiptap/starter-kit
pnpm install @tiptap/react @tiptap/pm @tiptap/starter-kit

先写进tiptap.tsx

js
'use client'

import { useEditor, EditorContent } from '@tiptap/react'
import StarterKit from '@tiptap/starter-kit'

const Tiptap = () => {
  const editor = useEditor({
    extensions: [StarterKit],
    content: '<p>Hello World! 🌎️</p>'
  })

  return <EditorContent editor={editor} />
}

export default Tiptap
'use client'

import { useEditor, EditorContent } from '@tiptap/react'
import StarterKit from '@tiptap/starter-kit'

const Tiptap = () => {
  const editor = useEditor({
    extensions: [StarterKit],
    content: '<p>Hello World! 🌎️</p>'
  })

  return <EditorContent editor={editor} />
}

export default Tiptap

但是这样随着方法逻辑越来越多，导致组件变得臃肿，所以拆分一下

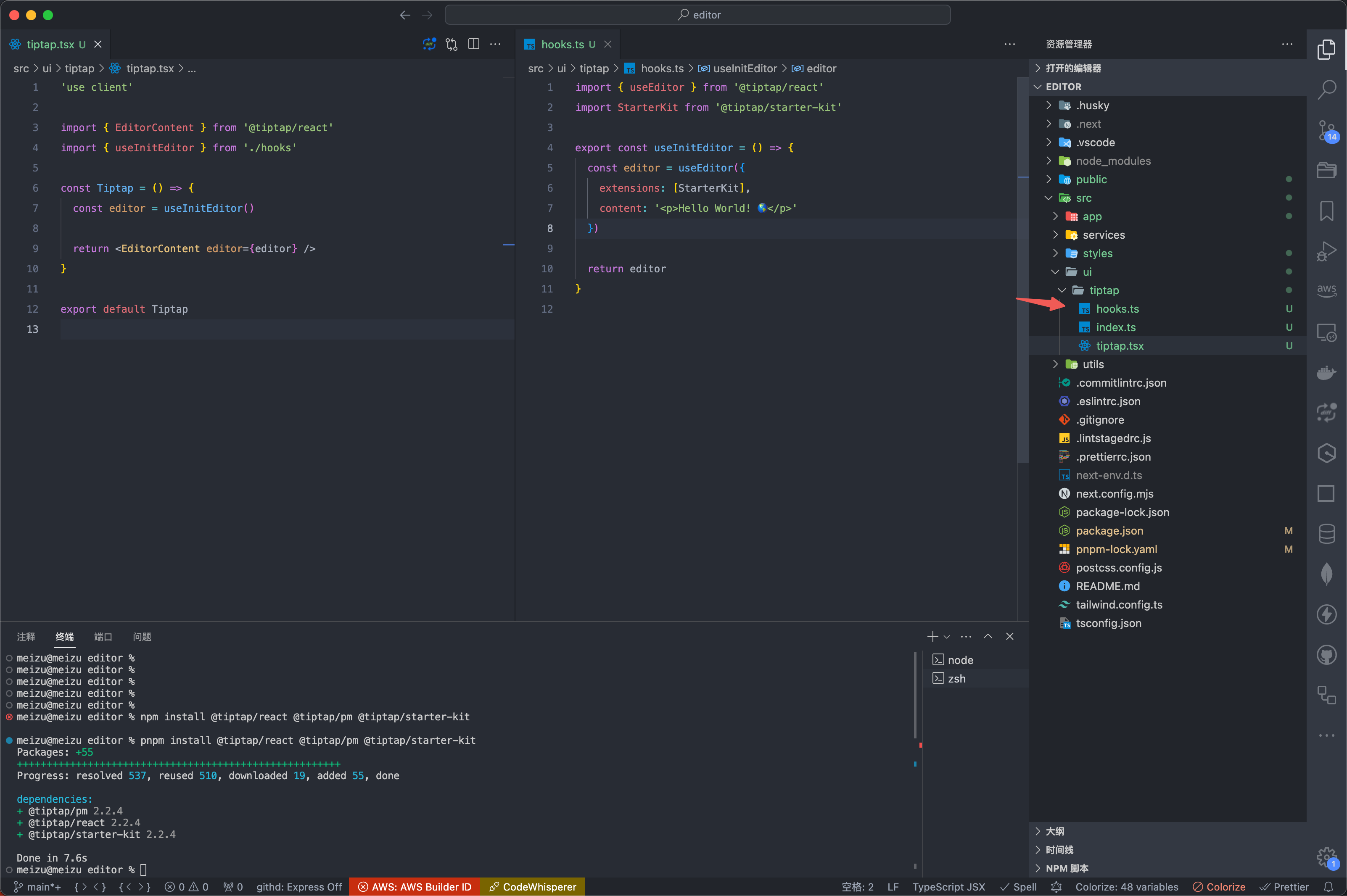

当前目录下新建 hooks.ts

js
import { useEditor } from '@tiptap/react'
import StarterKit from '@tiptap/starter-kit'

export const useInitEditor = () => {
  const editor = useEditor({
    extensions: [StarterKit],
    content: '<p>Hello World! 🌎️</p>'
  })

  return editor
}
import { useEditor } from '@tiptap/react'
import StarterKit from '@tiptap/starter-kit'

export const useInitEditor = () => {
  const editor = useEditor({
    extensions: [StarterKit],
    content: '<p>Hello World! 🌎️</p>'
  })

  return editor
}

然后tiptap 里引用这个hook

js
'use client'

import { EditorContent } from '@tiptap/react'
import { useInitEditor } from './hooks'

const Tiptap = () => {
  const editor = useInitEditor()

  return <EditorContent editor={editor} />
}

export default Tiptap
'use client'

import { EditorContent } from '@tiptap/react'
import { useInitEditor } from './hooks'

const Tiptap = () => {
  const editor = useInitEditor()

  return <EditorContent editor={editor} />
}

export default Tiptap

结果是这样

Alt text

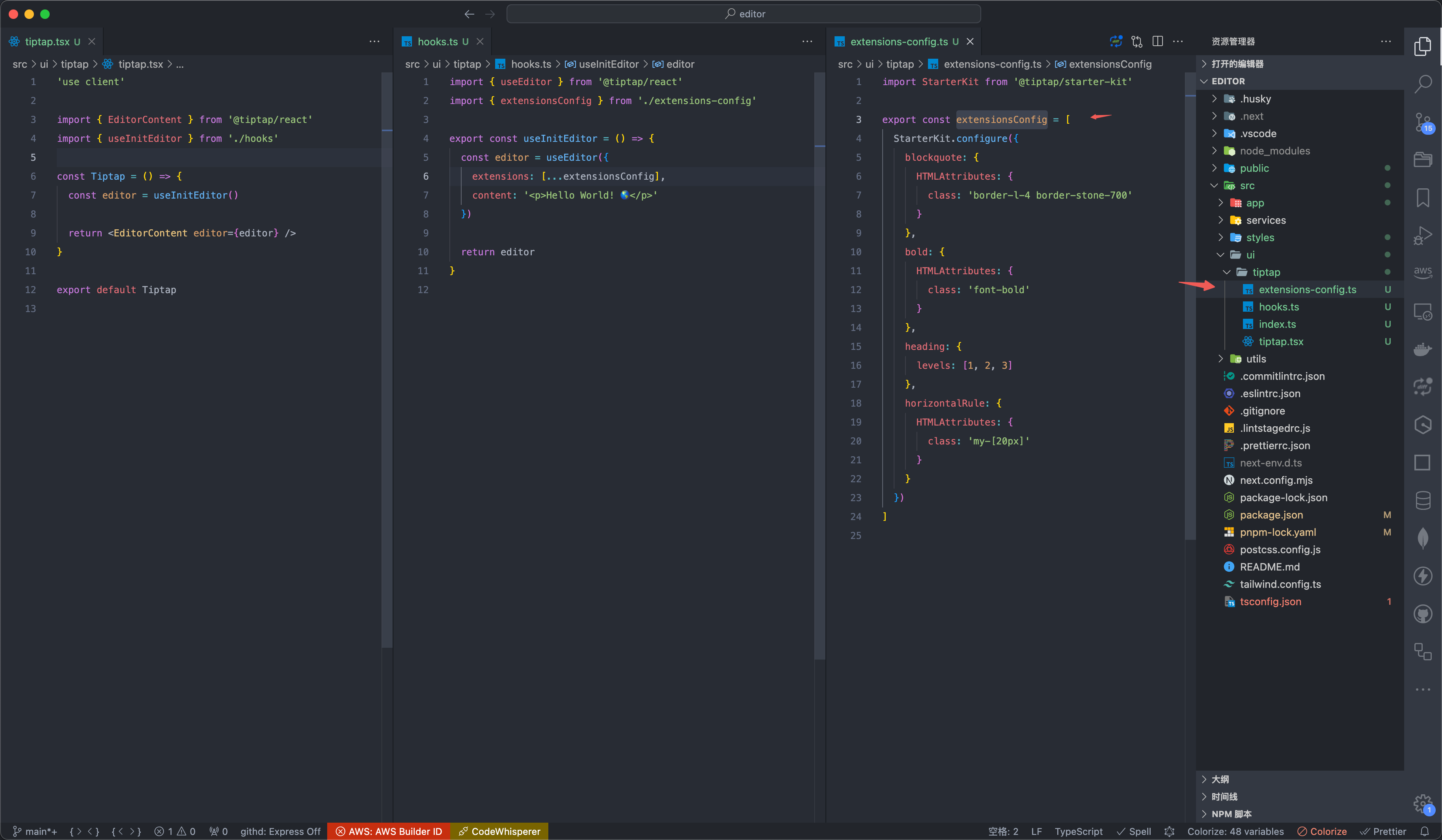

社区开源插件 config 拆分 ​

StarterKit是一个入门套件，里面包含了很多编辑器基础插件，这些插件都可以传入配置，所以这里把配置抽离出来

修改 hooks.ts

js
import { useEditor } from '@tiptap/react'
import { extensions } from './extensions'

export const useInitEditor = () => {
  const editor = useEditor({
    extensions: [...extensions],
    content: '<p>Hello World! 🌎️</p>'
  })

  return editor
}
import { useEditor } from '@tiptap/react'
import { extensions } from './extensions'

export const useInitEditor = () => {
  const editor = useEditor({
    extensions: [...extensions],
    content: '<p>Hello World! 🌎️</p>'
  })

  return editor
}

新增extensions.ts

js
import StarterKit from '@tiptap/starter-kit'

export const extensions = [
  StarterKit.configure({
    blockquote: {
      HTMLAttributes: {
        class: 'border-l-4 border-stone-700'
      }
    },
    bold: {
      HTMLAttributes: {
        class: 'font-bold'
      }
    },
    heading: {
      levels: [1, 2, 3]
    },
    horizontalRule: {
      HTMLAttributes: {
        class: 'my-[20px]'
      }
    }
  })
]
import StarterKit from '@tiptap/starter-kit'

export const extensions = [
  StarterKit.configure({
    blockquote: {
      HTMLAttributes: {
        class: 'border-l-4 border-stone-700'
      }
    },
    bold: {
      HTMLAttributes: {
        class: 'font-bold'
      }
    },
    heading: {
      levels: [1, 2, 3]
    },
    horizontalRule: {
      HTMLAttributes: {
        class: 'my-[20px]'
      }
    }
  })
]

结果是这样

Alt text

页面组件拆分 ​

但我们在组件里加按钮的时候，可能是这样，直接写进tiptap.tsx，组件越多越臃肿

js
'use client'

import { EditorContent } from '@tiptap/react'
import { useInitEditor } from './hooks'

const Tiptap = () => {
  const editor = useInitEditor()
  if (!editor) return
  return (
    <div>
      <button
        onClick={() => editor.chain().focus().toggleItalic().run()}
        disabled={!editor.can().chain().focus().toggleItalic().run()}
        className={editor.isActive('italic') ? 'is-active' : ''}
      >
        italic(⌘ + I)
      </button>
      <EditorContent editor={editor} />
    </div>
  )
}

export default Tiptap
'use client'

import { EditorContent } from '@tiptap/react'
import { useInitEditor } from './hooks'

const Tiptap = () => {
  const editor = useInitEditor()
  if (!editor) return
  return (
    <div>
      <button
        onClick={() => editor.chain().focus().toggleItalic().run()}
        disabled={!editor.can().chain().focus().toggleItalic().run()}
        className={editor.isActive('italic') ? 'is-active' : ''}
      >
        italic(⌘ + I)
      </button>
      <EditorContent editor={editor} />
    </div>
  )
}

export default Tiptap

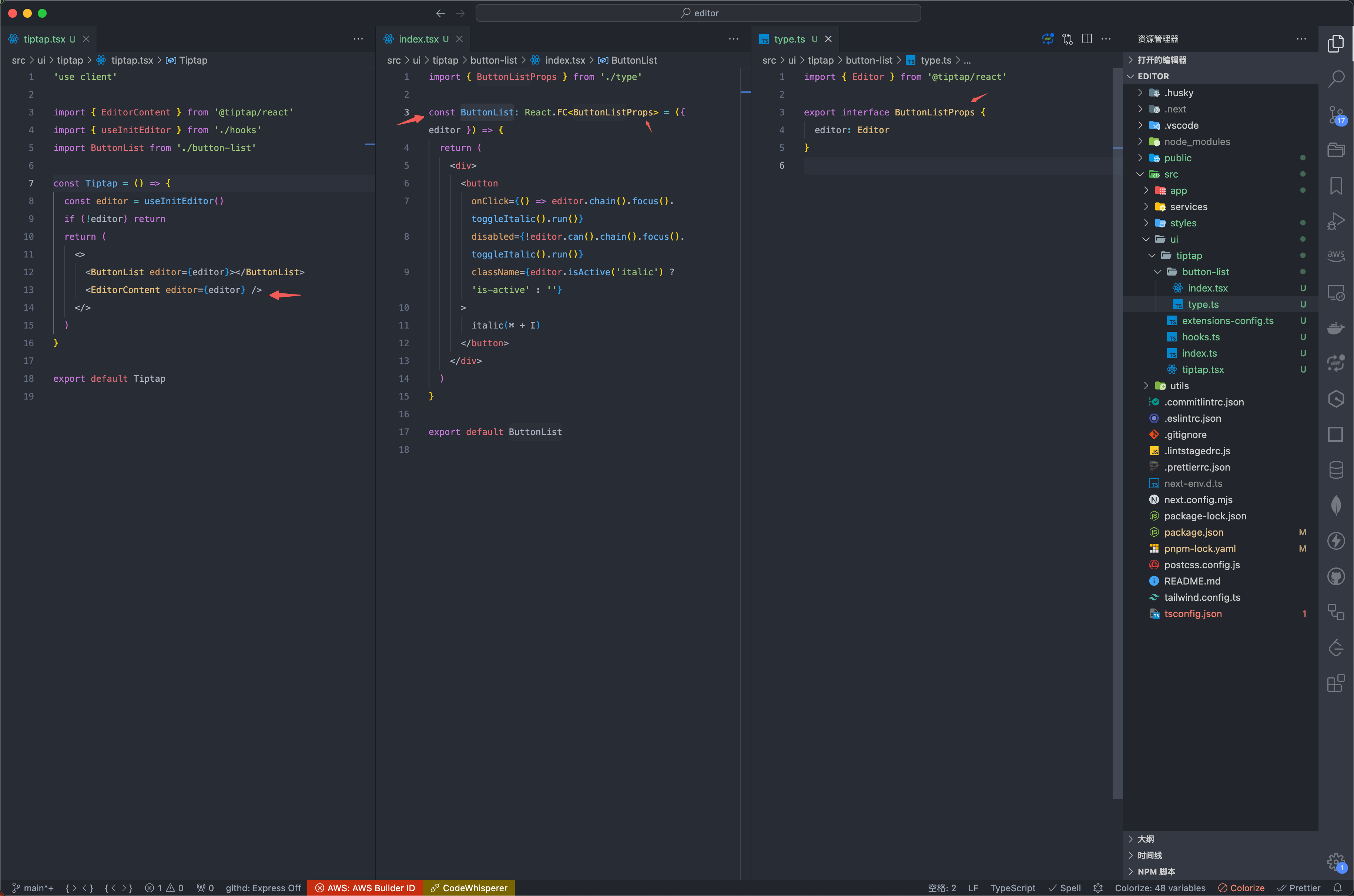

所以拆分一下，并且 TS 也拆分一下，减少臃肿，是这样：

Alt text

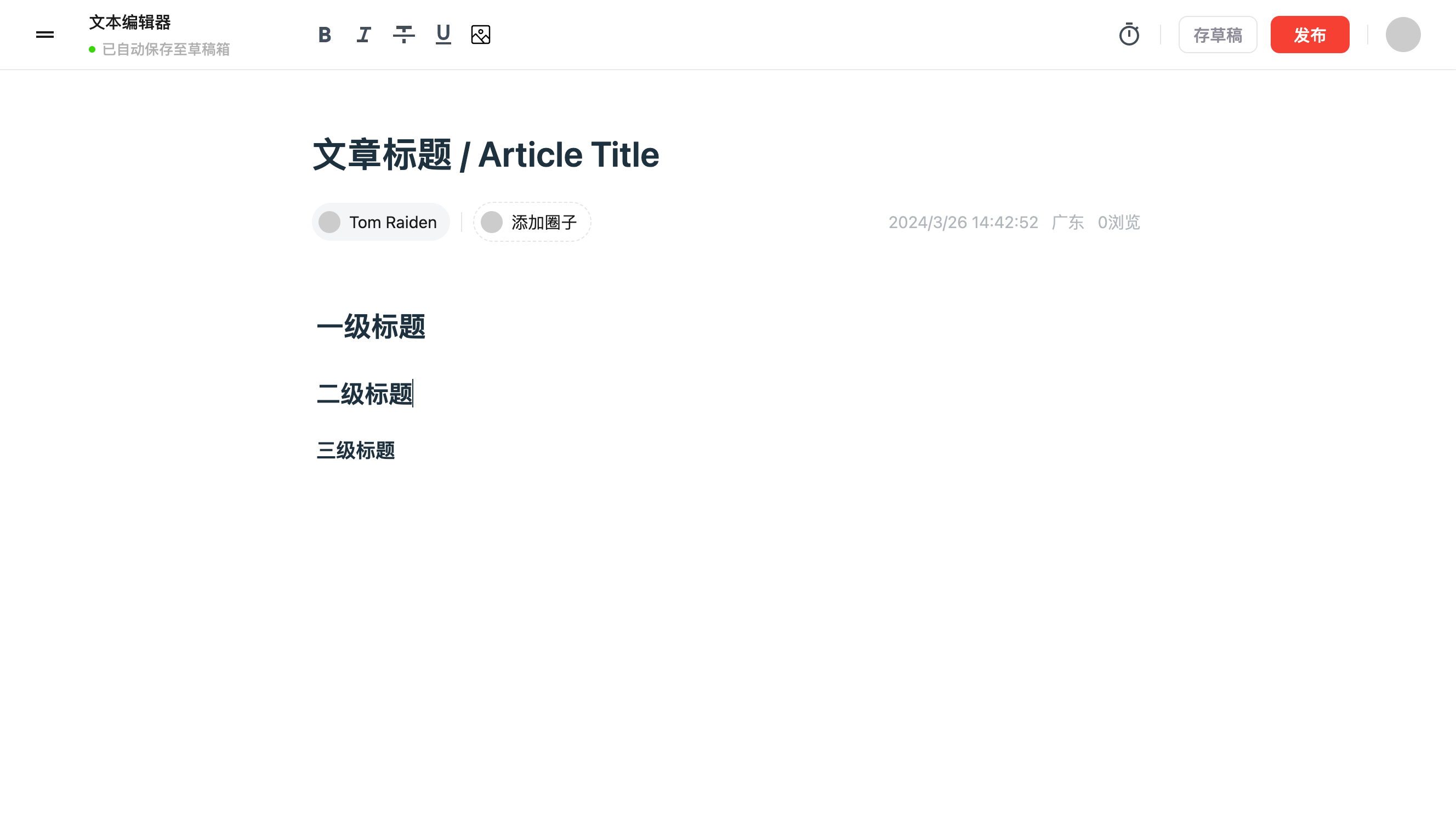

h1 h2 h3 样式 ​

alt text

初始样式是被 tailwind 重置的，所以需要自己写样式，同事标题是支持MD语法的

css
.ProseMirror h1 {
  margin-top: 24px;
  mix-blend-mode: 6px;
  font-size: 25px;
  color: rgba(2, 19, 36, 0.9);
  font-weight: bold;
  padding: 3px 2px;
}

.ProseMirror h2 {
  margin-top: 20px;
  mix-blend-mode: 6px;
  font-size: 22px;
  color: rgba(2, 19, 36, 0.9);
  font-weight: bold;
  padding: 3px 2px;
}

.ProseMirror h3 {
  margin-top: 16px;
  mix-blend-mode: 4px;
  font-size: 18px;
  color: rgba(2, 19, 36, 0.9);
  font-weight: bold;
  padding: 3px 2px;
}
.ProseMirror h1 {
  margin-top: 24px;
  mix-blend-mode: 6px;
  font-size: 25px;
  color: rgba(2, 19, 36, 0.9);
  font-weight: bold;
  padding: 3px 2px;
}

.ProseMirror h2 {
  margin-top: 20px;
  mix-blend-mode: 6px;
  font-size: 22px;
  color: rgba(2, 19, 36, 0.9);
  font-weight: bold;
  padding: 3px 2px;
}

.ProseMirror h3 {
  margin-top: 16px;
  mix-blend-mode: 4px;
  font-size: 18px;
  color: rgba(2, 19, 36, 0.9);
  font-weight: bold;
  padding: 3px 2px;
}

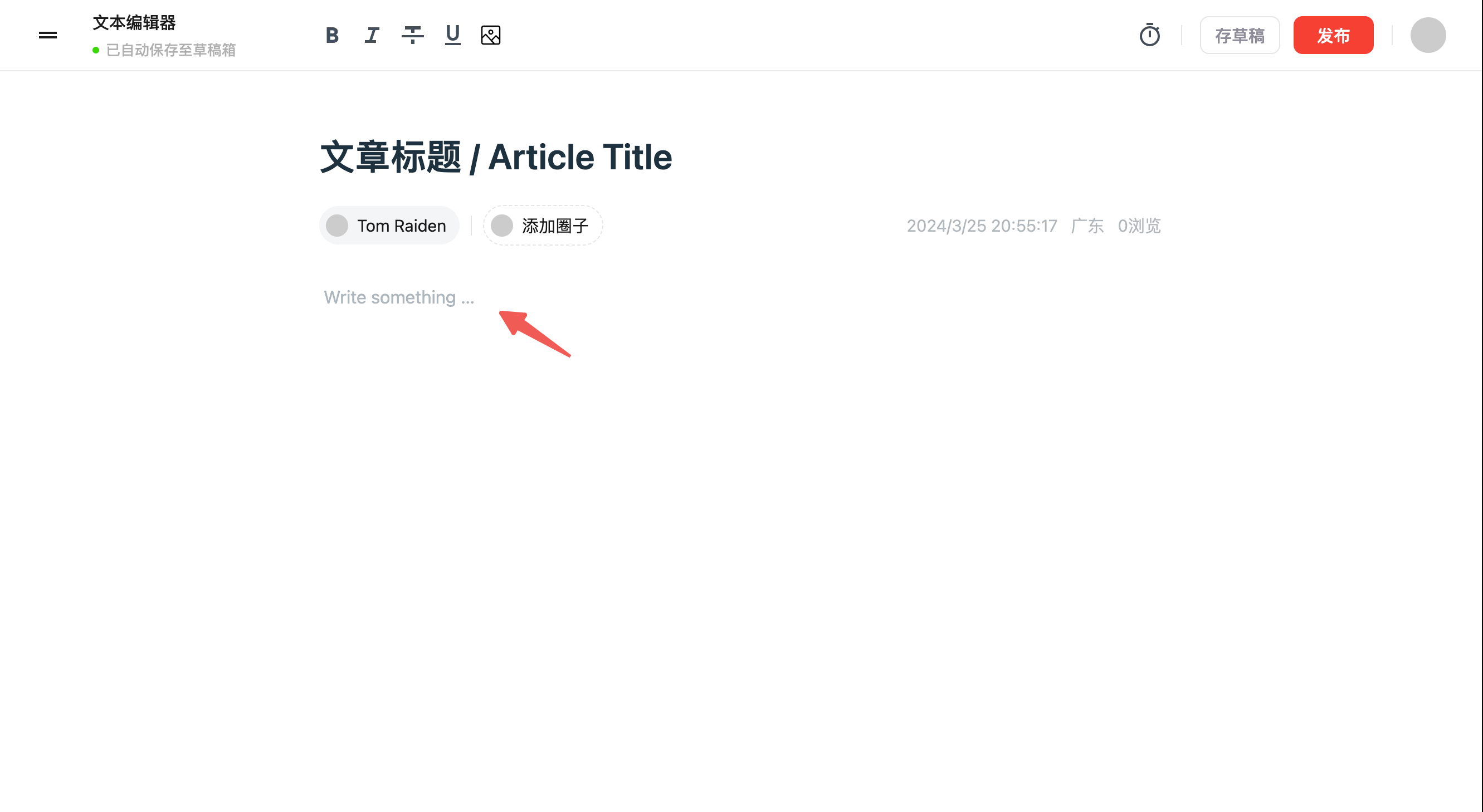

Placeholder 插件 ​

插件效果如下

alt text

alt text

安装插件 ​

js
pnpm i @tiptap/extension-placeholder
pnpm i @tiptap/extension-placeholder

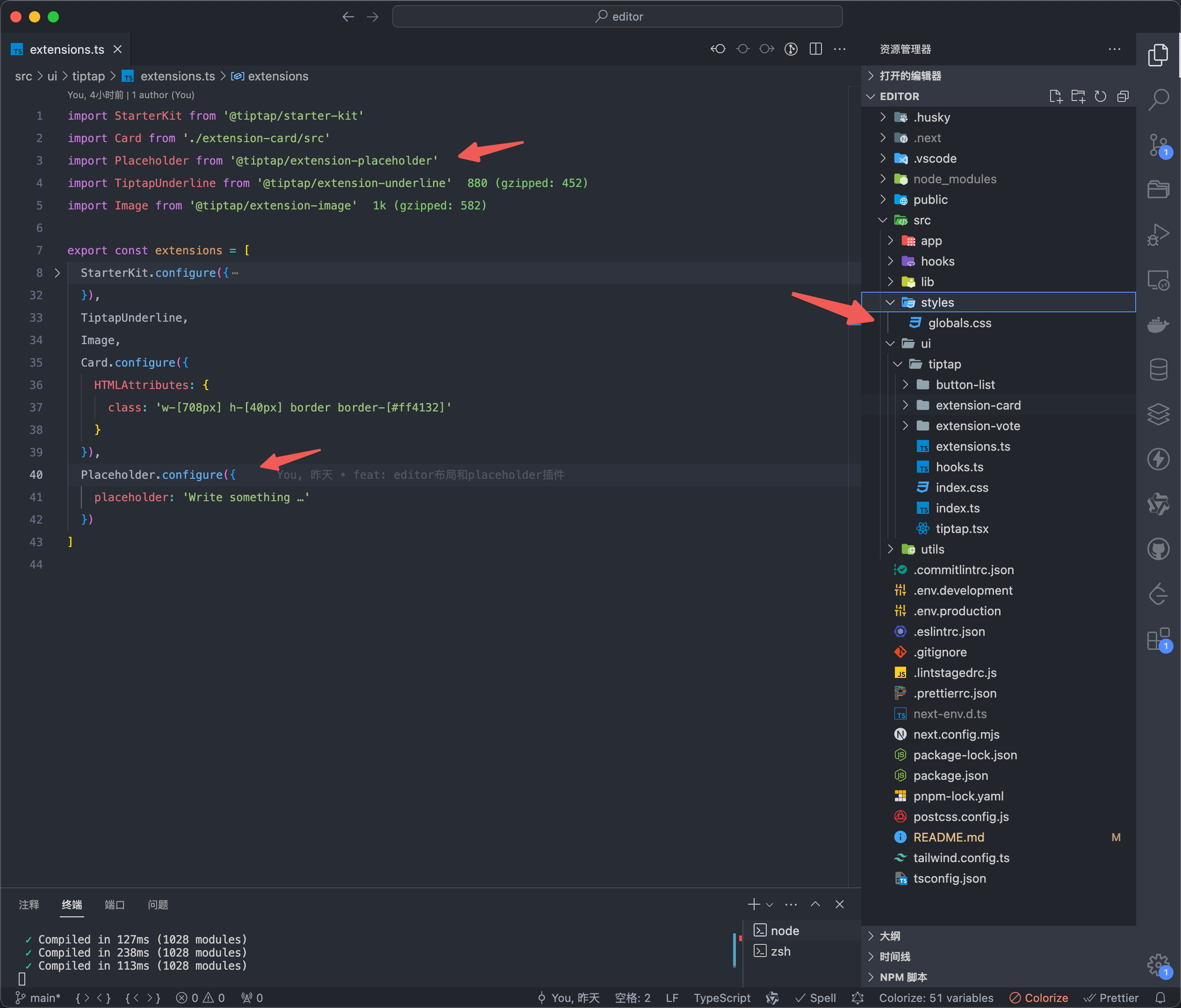

注入编辑器 ​

js
import Placeholder from '@tiptap/extension-placeholder'

export const extensions = [
  Placeholder.configure({
    placeholder: 'Write something …'
  })
]
import Placeholder from '@tiptap/extension-placeholder'

export const extensions = [
  Placeholder.configure({
    placeholder: 'Write something …'
  })
]

配置样式 ​

如果需要支持每行都有 placeholder，比如都提示输入/唤起气泡栏，官网也有方案，这里只写了首行的方案

css
.tiptap p.is-editor-empty:first-child::before {
  color: #adb5bd;
  content: attr(data-placeholder);
  float: left;
  height: 0;
  pointer-events: none;
}
.tiptap p.is-editor-empty:first-child::before {
  color: #adb5bd;
  content: attr(data-placeholder);
  float: left;
  height: 0;
  pointer-events: none;
}

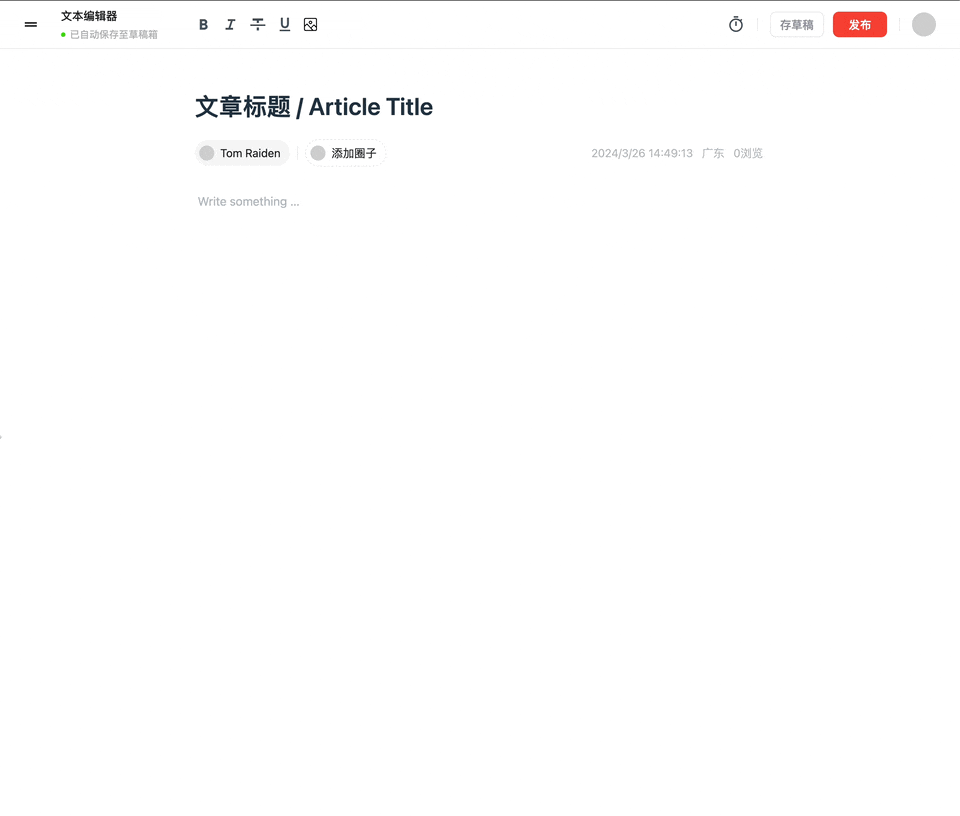

Image 图片上传插件 ​

alt text

安装插件 ​

js
pnpm i @tiptap/extension-image
pnpm i @tiptap/extension-image

注入编辑器 ​

js
import Placeholder from '@tiptap/extension-placeholder'

export const extensions = [
  Placeholder.configure({
  })
]
import Placeholder from '@tiptap/extension-placeholder'

export const extensions = [
  Placeholder.configure({
  })
]

使用插件 ​

如果要使用阿里云 OSS 等图片上传，可以参考相关功能

jsx
// 上传图片
export const uploadImage = async (editor: Editor) => {
  const input = document.createElement('input')
  input.type = 'file'
  input.accept = 'image/*'
  input.onchange = async () => {
    if (input.files?.length) {
      const file = input.files[0]
      const reader = new FileReader()
      reader.readAsDataURL(file)
      reader.onloadend = function (e) {
        editor
          ?.chain()
          .focus()
          .setImage({
            // src: e.target?.result as string
            src: url
          })
          .run()
      }
    }
  }
  input.click()
}

// JSX
;<button onClick={() => uploadImage(editor)}>
  <Image
    src={'/editor/image.svg'}
    width={20}
    height={20}
    alt=""
    className="cursor-pointer"
  ></Image>
</button>
// 上传图片
export const uploadImage = async (editor: Editor) => {
  const input = document.createElement('input')
  input.type = 'file'
  input.accept = 'image/*'
  input.onchange = async () => {
    if (input.files?.length) {
      const file = input.files[0]
      const reader = new FileReader()
      reader.readAsDataURL(file)
      reader.onloadend = function (e) {
        editor
          ?.chain()
          .focus()
          .setImage({
            // src: e.target?.result as string
            src: url
          })
          .run()
      }
    }
  }
  input.click()
}

// JSX
;<button onClick={() => uploadImage(editor)}>
  <Image
    src={'/editor/image.svg'}
    width={20}
    height={20}
    alt=""
    className="cursor-pointer"
  ></Image>
</button>

气泡组件 ​

安装插件 ​

js
pnpm i @tiptap/extension-bubble-menu
pnpm i @tiptap/extension-bubble-menu

注入编辑器 ​

js
import BubbleMenu from '@tiptap/extension-bubble-menu'

export const extensions = [BubbleMenu]
import BubbleMenu from '@tiptap/extension-bubble-menu'

export const extensions = [BubbleMenu]

使用插件 ​

350px 问题 ​

设置了默认 350px

使用 flex 或者 inline-flex

其它插件 ​

还有些可能会用的，但是 starter-kit 里没有的

  • underline 下划线插件
